Description

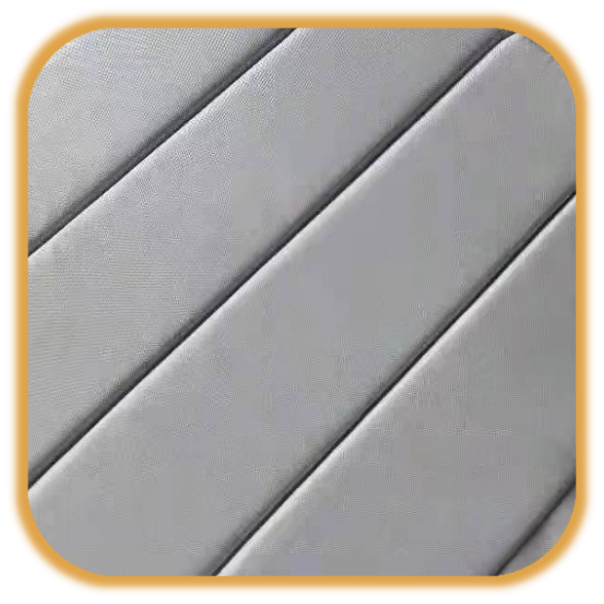

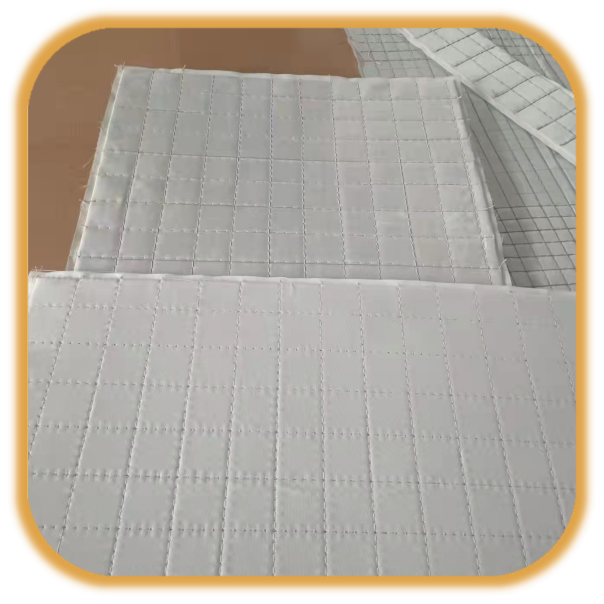

Thermal Insulation Panel
NT series nano thermal insulation panel is made of nano SiO2, TiO2, Al2O3, etc., based on the principle of nano pores, using a variety of materials, through special technology. Heat insulation effect is 3~5 times of traditional materials, stable performance, space saving, environmental protection and energy saving.
Advantage:
- Ultra-low thermal conductivity and heat loss;
- Small thermal storage;
- Reduce the thickness of the insulation layer;
- Temperature homogenization;
- Good thermal stability;
- High environmental protection and safety;
- Easy to cut and process molding;
- Long service life.
Application:
- Steel industry (tundish, ladle, torpedo tank);
- Petrochemical industry (cracking furnace, hydrogen furnace, reformer furnace, heating furnace);
- Glass industry (float pool kiln, tempering furnace, hot bending furnace);
- Industrial heat treatment furnace industry.
Standard size:
- (1000/500) * (600/500/250) * (5 -50) mm;
- (25000/20000/7500) x (1500/1200/910) x (3 -10) mm;
- Special specifications and sizes can be produced according to customer requirements.
Spacifications:
介紹:
NT系列納米絕熱板是以納米級SiO2、TiO2、Al2O3 等為主要原料，基於納米微孔原理，采用多種材料，經特殊工藝製成。隔熱保溫效果是傳統材料的3~5 倍，性能穩定，節省空間，環保節能。
產品優勢：
超低的導熱系數和熱損失；蓄熱小；降低隔熱層厚度；溫度均勻化；熱穩定性好；環保安全性高；容易切割和加工成型；使用壽命長。
應用：
鋼鐵行業（中間包、鋼包、魚雷罐）；石油化工行業（裂解爐、製氫爐、轉化爐、加熱爐）；玻璃行業（浮法池窯、鋼化爐、熱彎爐）；工業熱處理窯爐行業；
標準尺寸:
(1000/500)×(600/500/250)×(5－50)mm；(25000/20000/7500)×(1500/1200/910)×(3-10)mm；特殊規格尺寸可按客戶要求生產。

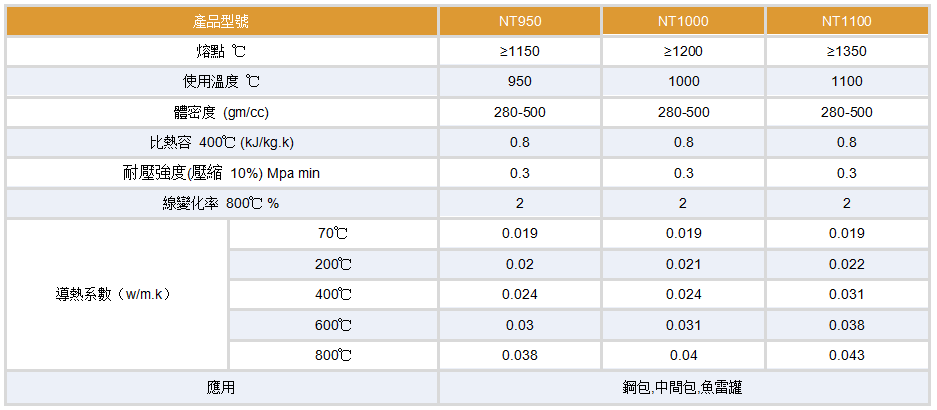

產品技術參數:
